Hydrasynth a Distinctive Modern Synth

Ashun Sound Machines (ASM) releases Hydrasynth Wave Morphing Hardware Synthesizer.

The HYDRASYNTH keyboard is both a sound designers dream synth as well as a performing musician ideal. The sound engine is designed for maximum flexibility. At the same time, we designed the user interface in a way to allow you to edit the patch quickly with a minimal amount of paging and many workflow shortcuts.

The HYDRASYNTH Desktop / Rack has the same great sound engine as the HYDRASYNTH Keyboard. The sound engine is a sound designers dream synth as well as performing musicians ideal. The sound engine is designed for maximum flexibility. At the same time, we designed the user interface in a way to allow you to edit the patch quickly with a minimal amount of paging and many workflow shortcuts.​

Werbung / Ad

Oscillator

Hydrasynth itself is an eight-voice, three-oscillator synthesizer tied to an unprecedented wave morphing synthesis engine. The tone generation capability is the heart of any synthesizer. ​The 3 oscillators allow you to choose from a selection of 219 single cycle waveforms. ​Wavemorphing is a feature usually found on synths with preset wavetables. Creating user wavetables is arduous or downright impossible. Unlike most wavetable synths, our oscillators 1 & 2 have our WAVELIST mode. This mode allows you to pick and choose 8 waves, from our bank of 219, arrange them in the order you want, and then morph from one to another.

MUTATORS

Oscillators 1 & 2 are routed into our MUTATORS. The Mutators allow you to modulate, bend and sculpt the sound in new (and old) ways.

The synthesis powerhouse further stars four mutators, allowing for further tonal modification. MUTANT 1, MUTANT 2, MUTANT 3, and MUTANT 4 have an ability to perform complex FM (Frequency Modulation) synthesis. Every includes three different types of pulse width modifiers, hard sync, harmonic sweep, and a Wavestack™ function that generates five detuned copies of the incoming waves for super-dense sounds. Furthermore, flexible routings within the mutators make available (almost) unlimited options for tweaking, twisting, and turning sounds inside out.

Filter

On top of that, the synthesis engine also contains two filters that can be configured in parallel or series. FILTER 1 features 11 filter models spanning new and classic filter modes, while FILTER 2 is a continuously-variable multimode affair.

LFO – Low-Frequency Oscillators

Like Hydrasynth sound engine, the five LFO’s are not ordinary by any means. ​The Hydrasynth LFO’s feature a STEP mode that allows you to create patterns with up to 8 steps. Having 5 mini step sequencers gives you an amazing amount of possibilities for further shaping your sound. Of course, there are also 10 standard waveforms to choose from. ​The LFO’s all have a delay, fade-in, 3 triggering modes, smoothing, start phase, one-shot mode so that they can act as envelopes and BPM sync.

Arpeggiator

The arpeggiator allows for standard note arpeggiations but also has a phrase arpeggio built-in. Parameters like RATCHET and CHANCE will generate other rhythmic patterns with some randomness to add life and spontaneity to your performance. You can also modulate most of the parameters in the arpeggiator so imagine using LFO’s, Envelopes, Polyphonic Aftertouch or the Ribbon controller to modify your arpeggios in real-time.

Eurorack / Semi-Modular – CV/GATE – MIDI – USB

There is the standard MIDI and USB/MIDI interfaces on the synth but we go deeper and allow the use of CV/GATE interfaces for connecting to the modular world. ​It supports the standard voltages for Eurorack modular as well as some of the Japanese Volts>HZ products. The MOD in and outs allow for modulation from DC to full audio ranges, expanding your modulation capabilities.

CV gate input and outputs

  • Support multiple CV/GATE standards
    • CV
      • 1v per octave +/-5V
      • 1V per octave 0-10V
      • Hz to Volts +/-5V
      • Hz to Volts 0-10V
    • Gates
      • V-trig, S-trig
      • 3V, 5V, 10V
    • Mod In/Out range
      • +/5V, 0-10V, 0-5V, 0-1V
  • Clock in and out
    • 1PPS, 2PPQ, 24PPQ, 48 PPQ
    • Clock Voltage – 3v, 5V, 10V

Desktop and Keyboard Version

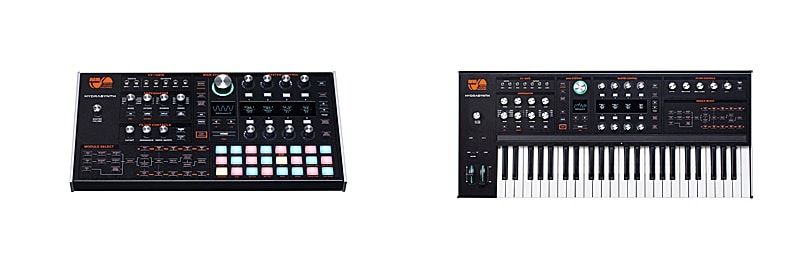

Alternatively, a desktop version of Hydrasynth — dispensing with that Polytouch™ keyboard and the user-assignable ribbon controller in favor of 24 velocity- and polyphonic aftertouch-sensitive pads. Is available to those not needing to add another keyboard to their studio or stage setups. Every other performance attributes are still at hand, including an adaptable ARPEGGIATOR and dedicated FILTER CONTROLS, with crisp OLED (organic light-emitting diode) displays duly providing welcomed visual feedback across the easy-to-follow front panels of both versions of ASM’s inaugural hardware product… when it comes to working with a sensational synthesis engine, the choice is out there!
